Final Assembly
You're almost done with assembling your 3MS! Follow this guide to finish the hardware side of assembly.

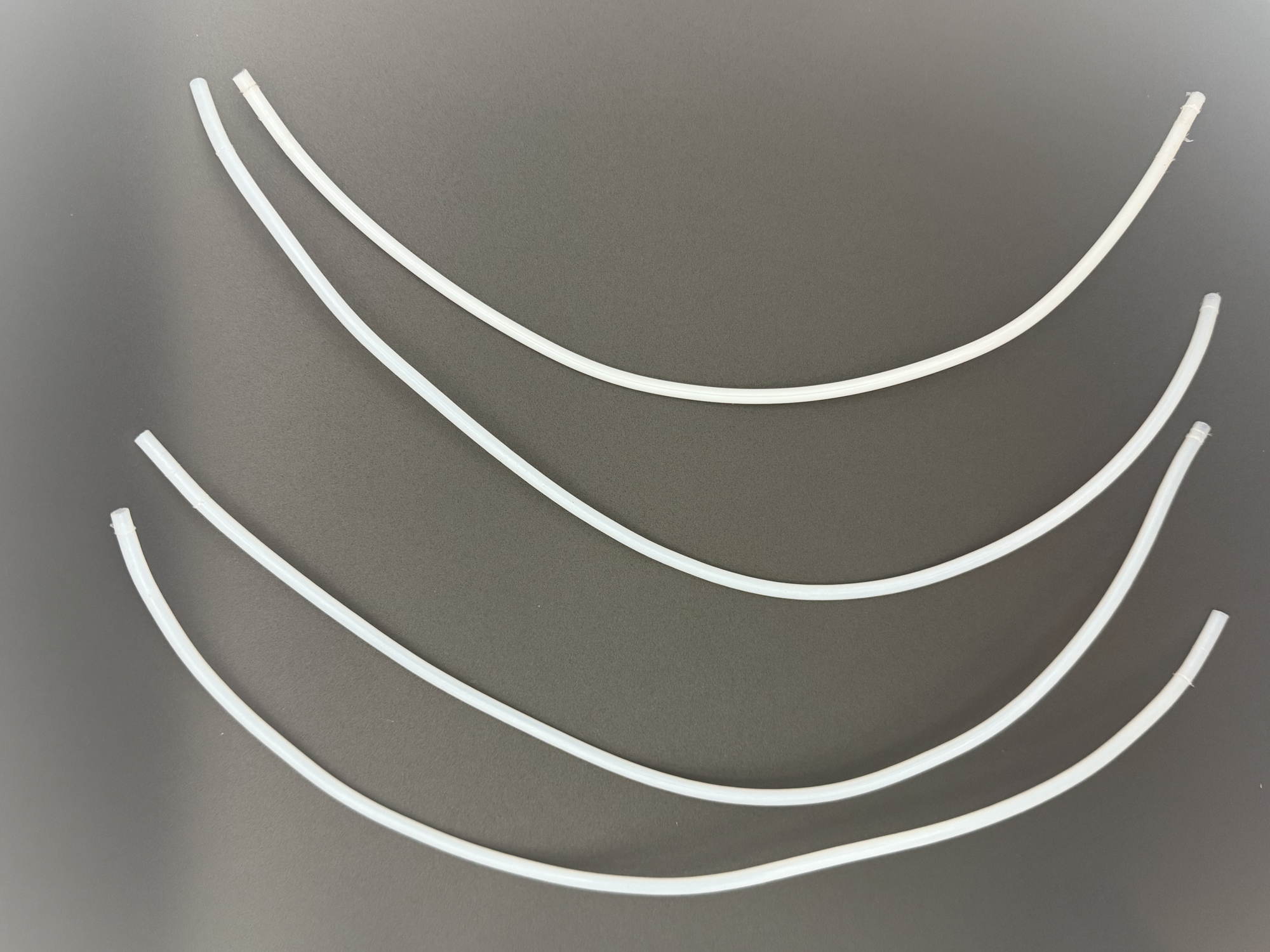

Step 1 Preparing the PTFE Tubing
- Cut four equal-length segments of PTFE tubing. These should each be long enough to almost reach from the 3MS to your printer's extruder.

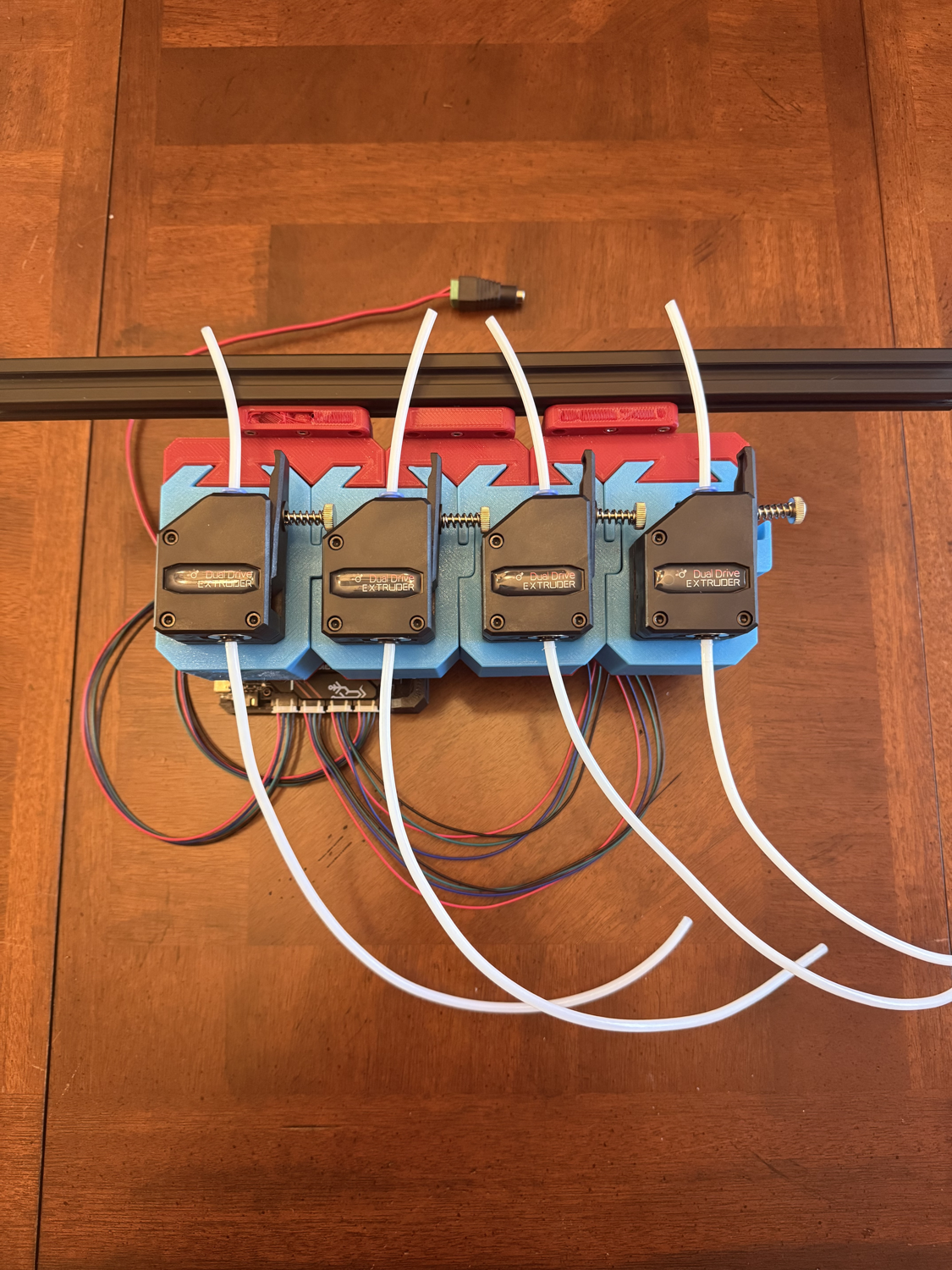

Step 2 Inserting the PTFE Tubing
- Insert all four segments of PTFE tubing into each of the four filament units.

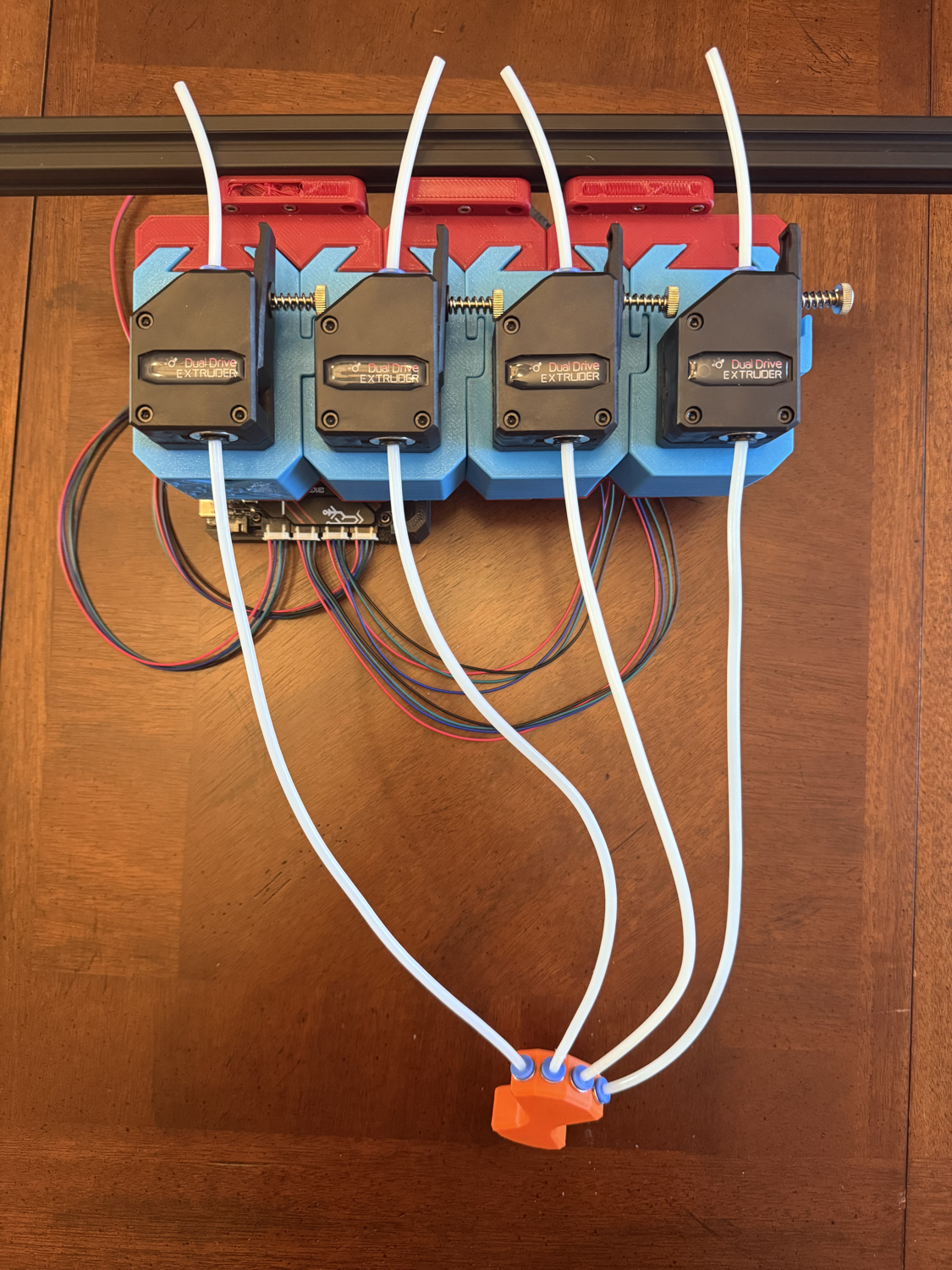

Step 3 Installing the Y-splitter
- Insert the other end of each of the four segments of PTFE into the Y-splitter.
Step 4 Tubing to the Extruder
Insert the remaining PTFE tubing into the other end of the Y-splitter. Cut to the proper size to reach your printer's extruder.
You're done building your 3MS!
